WGWT (D) series underground toilet sewage lifting integrated equipment

Product Introduction

The WGWT(D) series underground toilet sewage lifting integrated equipment is a new type of sewage lifting integrated equipment independently researched and developed by our company's professional technicians based on more than ten years of market experience and combined with advanced technologies at home and abroad. This equipment adopts a more economical and reasonable structural design, and is specially designed for the drainage of large and medium-sized public underground space toilets using advanced solid-liquid separation and backwashing lifting and discharge technology. It is the best choice for sewage lifting and discharge in large and medium-sized underground toilets. It has the remarkable advantages of novel design, unique structure, high efficiency operation, no blockage, no sedimentation, easy maintenance, economy, and environmental protection.

Applicable Fields

Lifting and discharging wastewater from toilets in various large and medium-sized basements. Such as underground spaces used for offices, shops, entertainment centers, clubs, supermarkets, civil defense, exhibition halls, etc., with lower floors.

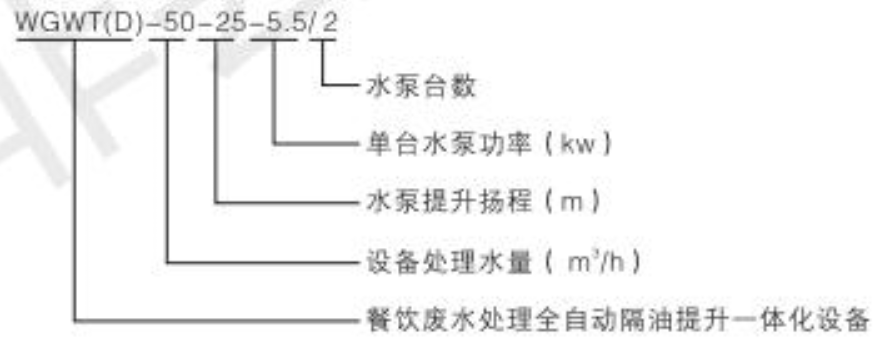

Model Description and Meaning

Product Features

■The equipment casing and main components are made of standard 304 stainless steel material, which has good acid and alkali corrosion resistance.

■Solid-liquid separation: An optimized solid-liquid separation device is used to separate debris and liquid from wastewater, which will not affect the impeller and flow passage of the water pump.

■Self-cleaning: During operation, the equipment automatically cleans the sludge accumulated inside the casing to ensure the cleanliness of the inside of the casing.

■Multi-point liquid level control is adopted, and it has strong drainage and ultra-high liquid level alarm functions to ensure stable operation of the equipment.

■The equipment operates in a fully enclosed manner. Connecting the dedicated vent (DN25), the equipment has no odor leakage, ensuring a good use environment.

■The equipment adopts an intelligent control system, multiple safety protection measures, stable operation, and simple operation.

■Modular design, all parts can be disassembled and assembled on site, maintenance is extremely convenient.

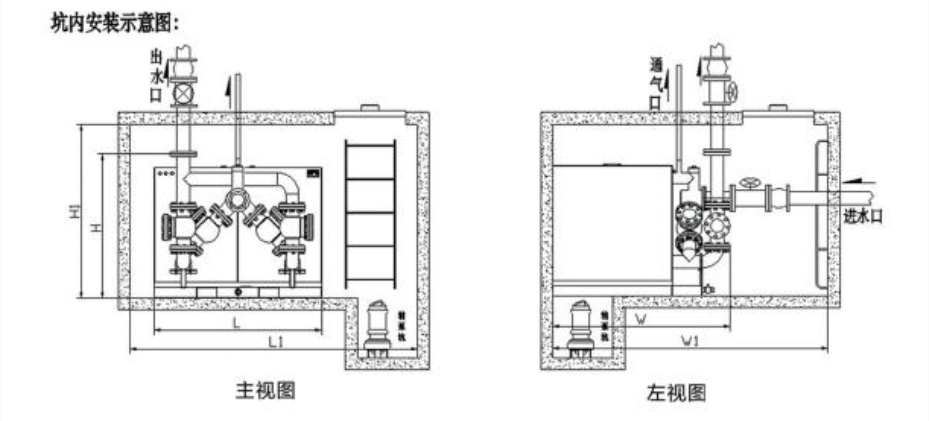

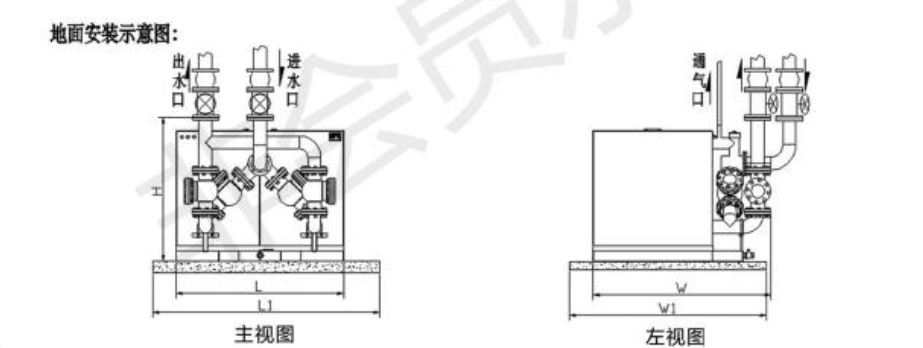

Equipment Dimensions and Installation Diagram

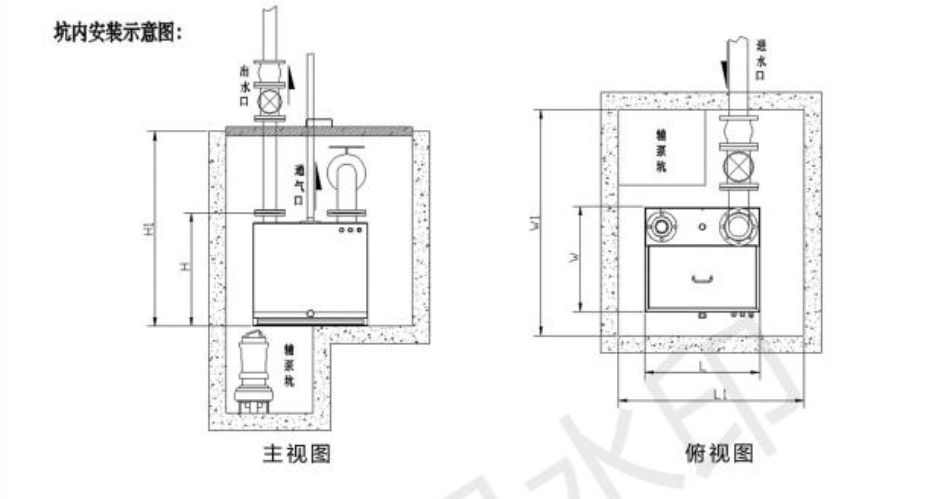

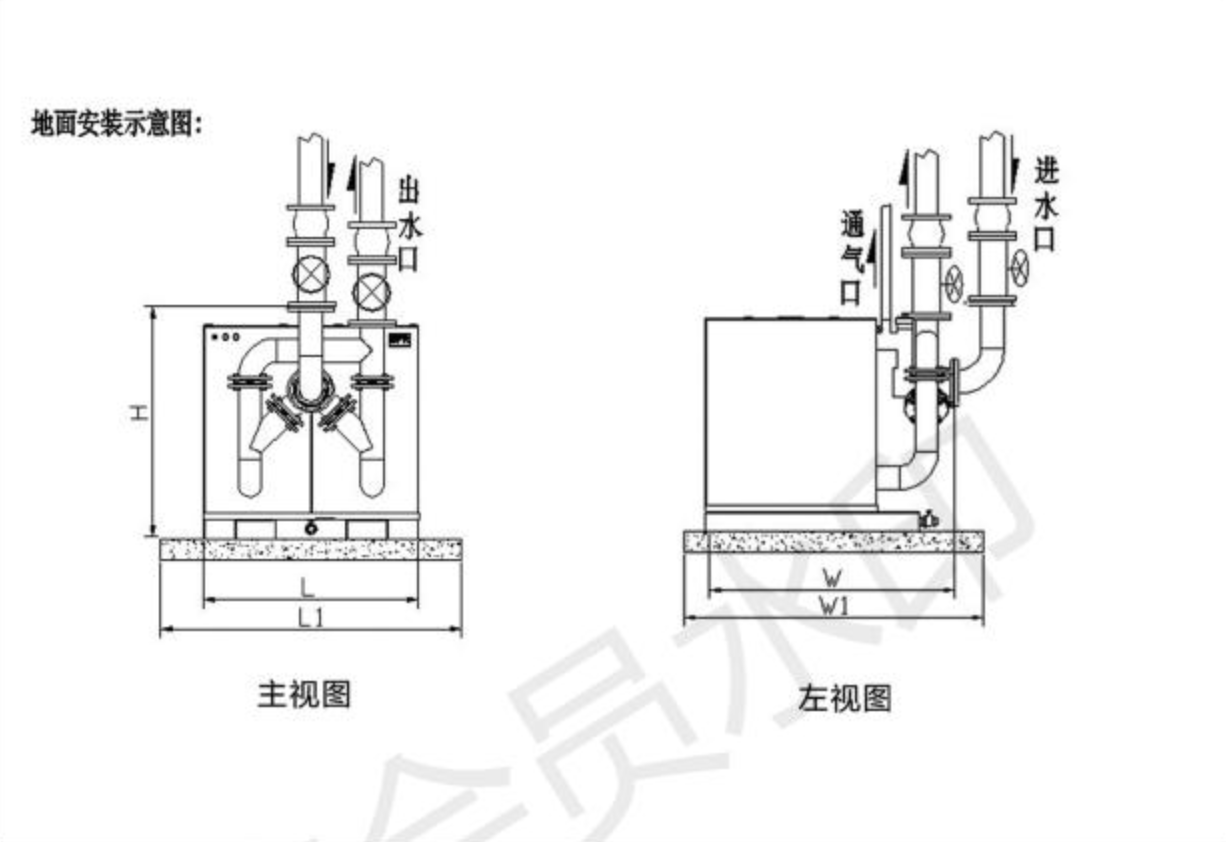

Equipment Dimensions and Installation Diagram

Equipment Dimensions and Installation Dimensions Table

Remarks:

■If an external sewage pump is selected, W and W1 will increase by 600mm accordingly;

■If there is no lower basement, choose in-pit installation on the same floor, and the pit size meets the installation size.

■Auxiliary pump pit and auxiliary pump are provided by the owner;

■Non-standard customization can be provided one-to-one according to customer needs and on-site use environment.
